[AWS] Load Balancing

Load balancing is a method used to distribute incoming connections across a group of servers or services.

  • Elastic Load Balancing (ELB) automates distributing traffic evenly to all instances in multiple AZs within a region.
    • Cross Zone Load Balancing allows load balancers to cross multiple AZs.
  • SSL can be directly applied to ELB – can help reduce the compute power on an EC2 instance.

Features

  • ELB has its own DNS record, which allows access to outside.
    • ELBs can be paired with Auto Scaling Groups to enhance high availability and fault tolerance.
    • ELB uses the health check – direct requests to only healthy instances.
    • Cross-zone LB can be enabled.
  • Load Balancing Target Type
    • EC2 Instances
    • Private IP Addresses
    • Lambda functions – ALB only
    • Application Load Balancers
  • “X-Forwarded-For” header is used to identify the originating IP of an end-user through a load balancer.
  • Load balancing algorithm – Target Groups
    • Round robin
    • Least outstanding requests
  • Sticky Sessions with ELB: EC2 instances need to keep the session info.
    • Load Balancer generated cookie
    • Application generated cookie
    • Non-ELB Option (Recommended)
      • ElastiCache or DynamoDB to find the session

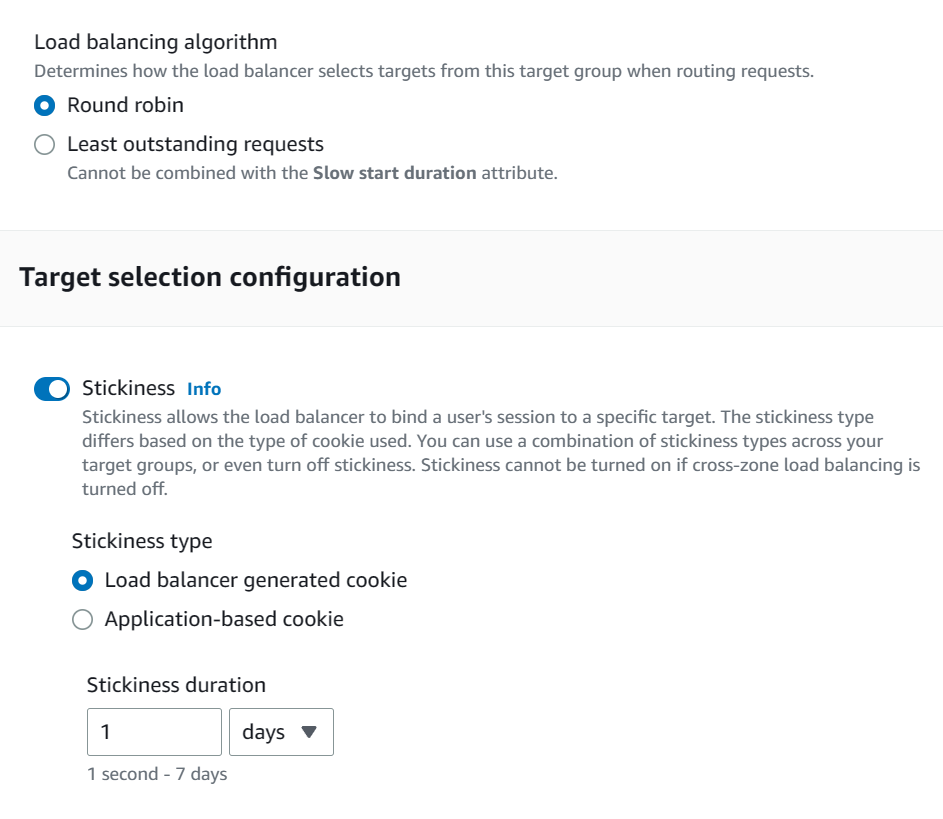

ELB Target Group Settings

Error Codes

  • 502 error (Bad Gateway)
    • The target host is unreachable.
    • Check your security group allow traffic
  • 503 error (Service Unavailable)
    • There is no registered target.
    • Check your target groups
  • 504 error (Gateway timed out)
    • The host is reachable but the applications (a web server, a database, or a lambda function) do not respond within the idle timeout period.
    • Check your application is running

Types of ELB

TypeAbbreviationLayerFeature
Application Load BalancerALBLayer 7 (Application)General
Network Load BalancerNLBLayer 4 (Transport)Low latency, High Performance
Gateway Load BalancerGWLBlayer 3 (Network)Distribute traffic across multiple third-party virtual appliances
Classic Load BalancerCLBLayer 3 & 4 (TCP & SSL) + Some Layer 7 features (X-Forwarded-For header)Legacy only
CLB
  • CLB is an old type and should be avoided. It can only be used with EC2-Classic
  • No granular routing rules. All instances get routed evenly
  • Good when all instances contain the same data.
  • 504 error (Gateway timed out) was reported when applications do not respond.
  • DNA A Record is connected to the CLB – 1 SSL Certificate per CLB.
  • Offload SSL connection – HTTPS to the load balancer and HTTP to instances
ALB
  • ALB operates at Layer 7 (Application): the default LB for VPCs.
    • HTTP, HTTPS, WebSocket
  • Supports EC2, ECS, EKS, Lambda, HTTP, HTTPS, and Web Sockets
  • Can be integrated with AWS Web Application Firewall (WAF)
  • Listeners
    • By using rules (conditions and target groups), you can redirect requests to multiple target groups.
      • Host-based: based on the host field of the HTTP header
      • Path-based: based on the URL path of the HTTP header
  • Target Groups -> Targets (Instances)
  • ALB needs to be deployed into at least 2 subnets.
NLB
  • NLB operates at Layer 4 (Transport)
    • TCP, UDP
  • Low latency, source IP address preservation (packets unchanged), best performance
  • Capable of handling millions of requests per second – used for extreme performance but expensive
  • Targets can be addressed using IP addresses (static IP address or Elastic IP).
GWLB

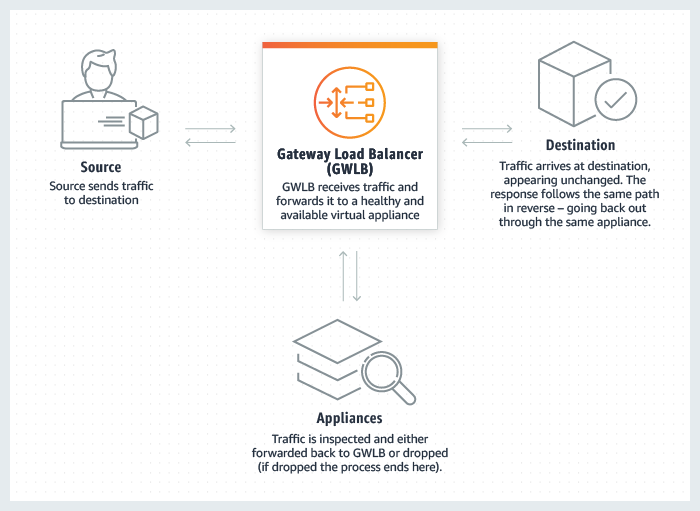

  • Gateway Load Balancer (GWLB) provides a gateway to distribute traffic across multiple third-party virtual appliances running in AWS.
  • Works at OSI Layer 3 (Network) – IP Protocol
https://aws.amazon.com/elasticloadbalancing/gateway-load-balancer/

ALB – Listener Rules

You can specify multiple rules in ALB listeners.

  • Rules are processed in order (with the default one as the last)
  • Supported Actions
    • Forward
    • Redirect
    • Fixed Response
  • Conditions
    • host-header, http-header
    • http-request-method
    • path-pattern
    • source-ip
    • query parameters
  • Target Group Weighting
    • Specify weight for each target group on a single rule

Cross-Zone Load Balancing

The nodes for a load balancer distribute requests from clients to registered targets.

  • When the “cross-zone load balancing” is enabled, each load balancer node distributes traffic across the registered targets in all enabled Availability Zones.
    • In ALBs, cross-zone load balancing is enabled by default.
    • Other types of LBs, the setting is disabled by default.
  • When the “cross-zone load balancing” is disabled, a load balancer distributes traffic only across the registered targets in each Availability Zone.

For example, you have hosted EC2 instances in two AZs. AZ-1 has 2 instances and AZ-2 has 8 instances.

  • When the “cross-zone load balancing” is enabled, each of the 10 targets receives 10% of the traffic.
  • When the “cross-zone load balancing” is disabled, each of the two targets in AZ-1 will receive 25% (50/2) of the traffic and each of the eight targets in AZ-2 will receive 6.25% (50/8) of the traffic.

ELB Dynamic Ports

  • Classic Load Balancer must statically map port numbers on a container instance.
  • The second-generation LBs (ALB and NLB) supports dynamic ports.
  • A single EC2 instance can run multiple containers that use randomly assigned ports – these port numbers are not static and may change when the instance restarts.
    • Dynamic ports are controlled by target groups, which track the list of ports.
  • Ideal for containerized services (docker, Elastic Container Services (ECS))

Monitoring & ELB Access Logs

By default, ELB sends some basic metrics to CloudWatch.

  • HealthyHostCount
  • UnHealthyHostCount
  • RequestCount
  • TargetResponseTime
    • The time elapsed, in seconds, after the request leaves the load balancer until a response from the target is received.

ELB Access Logs is an optional feature – disabled by default – that captures detailed information about requests.

  • Each log contains information such as the time the request was received, the client’s IP address, latency, request paths, and server responses.
    • client:port – IP address and port
    • request – method, protocol, url
    • request_processing_time
    • response_processing_time
    • chosen_cert_arn: The ARN of the certificate presented by a client
  • Captures the logs are stored in the Amazon S3 bucket.
  • Each access log file is automatically encrypted using SSE-S3 before it is stored in your S3 bucket and decrypted when you access it. No user action is required.

Authenticate Users with ALB

You can configure ALB to authenticate users.

  • through OpenID Connect (OIDC) compliant Identity Provider (IdP)
  • through the user pools supported by Amazon Cognito
    • use social IdpS, such as Google, Facebook, or Amazon
    • use corporate identities using SAML, Microsoft AD,or LDAP

ALB authentication with CloudFront

You need to set the following settings:

  • Forward request headers: CloudFront does not cache responses for authenticated requests
  • Query string forwarding and caching: the ALB has access to the query string parameters
  • Cookie forwarding: CloudFront forwards all authentication cookies to the ALB

DualStack Networking

With DualStack, you can allow clients access the ELB using both IPv4 and IPv6.

  • Both ALB and NLB support dualstack.
  • Ensures compatibility between clients and target IP versions
    • IPv4 clients connect to IPv4 targets
    • IPv6 clients connect to IPv6 targets

SSL on ALB

  • You can load SSL on ALB using ACM (AWS Certificate Manager).
    • Users access ALB using SSL (HTTPS).
    • ALB communicates with private EC2 instances using HTTP.
