[AWS] EC2 – AMIs

AMIs (Amazon Machine Images) are containers that are used to build instances (OS + SW packages + settings).

Features

• Snapshots of EBS volumes are created automatically and used to create an AMI.
• AMI stores a snapshot of EBS volumes, permissions, and a block device mapping.
• AMIs need to have appropriate launch permissions (private, a specific account, or public).
• AMIs can be copied to other AWS regions.
• AMI is used with Auto Scaling to launch new servers on demand.
• AMIs are only available in the region they are created.
• You can select the AMI based on: Region, OS, Architecture (32, 64, Arm), Launch Permissions, Root Storage Types (EBS or Instance store volume).
• EBS is from the snapshot, and an Instance store volume is from the template.

---

Types of AMIs

• Community AMIs (free)
• AWS Market AMIs (pay to use + additional licensed software)
• My AMIs

---

EC2 Image Builder

EC2 Image builder allows you to create AMIs and container images simply through a graphical interface.

• validates and tests images.
  • Security compliance, AWS-provided tests, or custom tests
• Use case:
  • You can automate image update processes such as software updates.
  • Image Builder creates a new image, runs validation tests, and makes it available in AWS regions of your choice.
• can be run on schedule.
• A free service. You need to pay only for the underlying resources.
• can publish AMIs to multiple regions and multiple accounts
  • Use AWS RAM (Resource Access Manager) to share images, recipies, and components across accounts or through AWS Organization

Image Pipeline

• Image Recipe:
  • Image builder uses a recipe for each image.
  • An image can be AMI (Amazon Machine Image) or Docker Image.

• A pipeline defines the configuration and end-to-end process.
  • Base OS (Source Image) -> Software (Build Components) -> Tests -> Distribution

---

How to use Image Builder

1. Create an IAM Role
   • Add permissions for EC2 Image Builder
2. Create an Image Pipeline
   • Define a recipe – configuration settings
     • Image (Output) Type: AMI or Docker Image
     • Base Image
     • Add Components
3. Execute the Pipeline
   • Image Builder launches a temporary build and tests the instance.
4. The image can be seen in the EC2 console AMIs section.

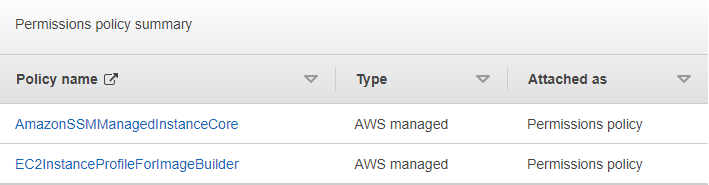

Role

---

Use Cases of Image Builder

Tracking Latest AMI ID

1. A new AMI is created by Image Builder
2. Send a notification to the SNS Topic
3. A Lambda function is invoked
   • A new AMI Image is stored in the SSM Parameter Store.
4. A new AMI id can be referenced to users or in the CloudFormation templates.

Auto Scaling Launch Template

• On EC2 Image Builder, you can create a new version of your EC2 Auto Scaling launch template that references your latest Amazon Machine Images (AMIs).
• Using Image Builder pipeline (in the distribution phase), you can easily create these new launch template versions with the latest AMI to be used across all your AWS regions.
  • You can specify an Amazon EC2 launch template in your distribution settings, using launchTemplateConfigurations.
• Configure the Auto Scaling groups to use the newest version of the launch template.
