Kubernetes – Install and Test on CentOS7

This is how to install Kubernetes on the Linux machine (CentOS7) – Master Node + Worker Node

Prerequisite – Install Docker

Docker – Install on CentOS 7

docker version

Check the OS

cat /etc/redhat-release

Switch User to root

sudo su

Disable SELinux

  • SELinux (Security Enhanced Linux) is a Linux kernel security module
    • Enforcing: SELinux allows access based on SELinux policy rules. (default)
    • Permissive: SELinux only logs actions that would have been denied if running in enforcing mode.
    • Disabled: No SELinux policy is loaded.
  • The containers need to access the host file system
setenforce 0
sed -i --follow-symlinks 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/sysconfig/selinux

Enable the br_netfilter module for cluster communication

  • This ensures that packets are properly processed by IP tables during filtering and port forwarding.
modprobe br_netfilter
echo '1' > /proc/sys/net/bridge/bridge-nf-call-iptables

Disable swap to prevent memory allocation issues

swapoff -a

vim /etc/fstab
  • Comment out the swap line

Add the Kubernetes repo

cat <<EOF> /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://packages.cloud.google.com/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://packages.cloud.google.com/yum/doc/yum-key.gpg
https://packages.cloud.google.com/yum/doc/rpm-package-key.gpg
EOF

Install Kubernetes

yum install -y kubelet kubeadm kubectl

Check the docker

sudo systemctl enable docker
sudo systemctl start docker

docker image ls

Enable Kubernetes

  • The kubelet service will not start until you run kubeadm init.
sudo systemctl enable kubelet

Initialize the cluster using the IP range for Flannel – Master Only

  • This is only for the master node. Do not run this on a worker node.
kubeadm init --pod-network-cidr=10.244.0.0/16
  • Copies the last command “kubeadmin join”

Exit sudo and Copy the config – Manage Cluster as Regular User – Master Only

exit

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

Check the Installation – Master

kubectl get nodes
  • There is 1 node and its status is “NotReady”

Deploy Flannel – Master Only

  • A Pod Network allows nodes within the cluster to communicate. The flannel virtual network add-on is used for this purpose.
kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

kubectl get nodes
  • Now the node is ready

Join worker nodes to master – Worker

  • This is only for the worker node.
  • In the worker node, run the “kubeadm join” command copied before
sudo kubeadm join 172.31.115.9:6443 --token lzbl14.prno5dl0kxm73jee --discovery-token-ca-cert-hash sha256:1f73ceb22b2af3bec315d35abd313f19576d96bfd0cee771df2f9763f8bb00f7


Check the cluster State – Master

kubectl get nodes

kubectl get pods --all-namespaces

kubectl cluster-info
  • You can see all nodes (master + workers)

Testing

Create a simple pod running an nginx container

cat << EOF | kubectl create -f -
apiVersion: v1
kind: Pod
metadata:
  name: nginx
spec:
  containers:
  - name: nginx
    image: nginx
EOF


Get a list of pods and verify that your new nginx pod is in the Running state

kubectl get pods

kubectl describe pod nginx


Get the IP addresses of your pods

kubectl get pods -o wide

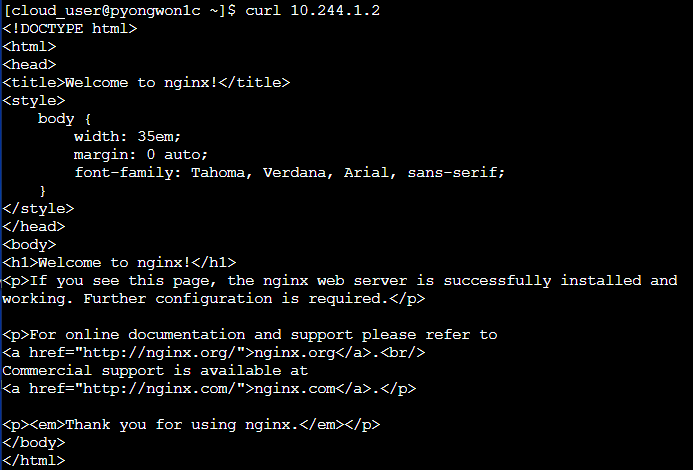

  • Get the ip address of the pod and curl to the ip == > you can get the nginx welcome page

Delete the pod

kubectl delete pod nginx
