[AWS Lab] Analytics – S3, Glue, Athena

In this lab, we will learn how to use AWS Glue to create a data pipeline.

Overview

• S3
  • Source data
• Glue
  • Create crawler to retrieve the metadata
  • Create a table
• Athena
  • Query the data through the Glue table

1. Text Editor – Create a CSV file

Using any text editor, create a “people.csv” file.

firstName,lastName,age
Paul,Henderson,20
Grace,Carr,32
Julia,Jackson,14
Alexandra,May,43
Anna,Jones,29

2. S3 – Create a bucket and upload the CSV file

• Click “Create bucket”
  • Bucket name: any unique name like “my-bucket-2023-12-25“
  • Accept all defaults -> It creates a bucket with no public access.
  • Click “Create bucket“
• Click the bucket name in the list
  • Click “Upload“
  • Click “Add files” and select “people.csv“
  • Click “Upload“

3. Glue – Create a Crawler

• Click “Crawlers” on the left pane
• Click “Create crawler”
  • Properties
    • Name: “People-Crawler“
  • Data source
    • Already mapped to tables: “Not yet“
    • Click “Add a data source”
      • Data source: “S3“
      • Network connection: empty
      • Location of S3 data: “In this account“
      • S3 path: Click “Browse” and select the one you created such as “s3://my-bucket-2023-12-25“
      • Subsequent crawlers runs: “Crawl all sub-folders“
      • Click “Add an S3 data source“
  • Security settings
    • Click “Create new IAM role“
    • Name: “AWSGlueServiceRole-People“
    • Click “Create“
  • Output and scheduling
    • Target database
      • Click “Add database“
      • Name: “people“
      • Click “Create database“
      • Select the “people” database
    • Schedule
      • Frequency: “On demand“
  • Review and create
    • Click “Create crawler“

4. IAM – Check the Role

• Click “Roles” on the left pane
• Search “Glue“
• Click “AWSGlueServiceRole-People“

5. Glue – Run crawler

• Click “Crawlers” on the left pane
• Click “People-Crawler“
• Click “Run crawler”
  • Check the status until it says “Completed“

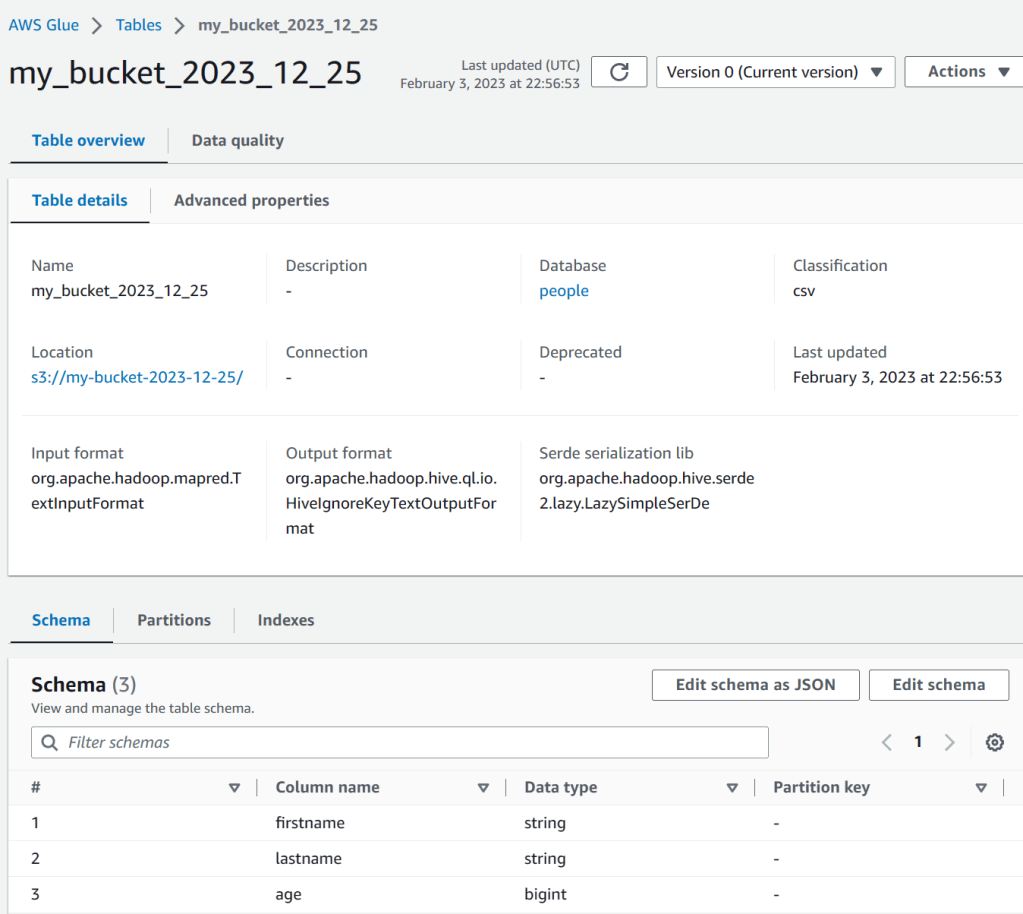

6. Glue – Check Database table in the Data Catalog

• Click “Databases” on the left pane
• Click the “people” database
• You can see the table. If not, click the refresh button.
• Click the table name
  • You can see the meta data and the schema of the table.

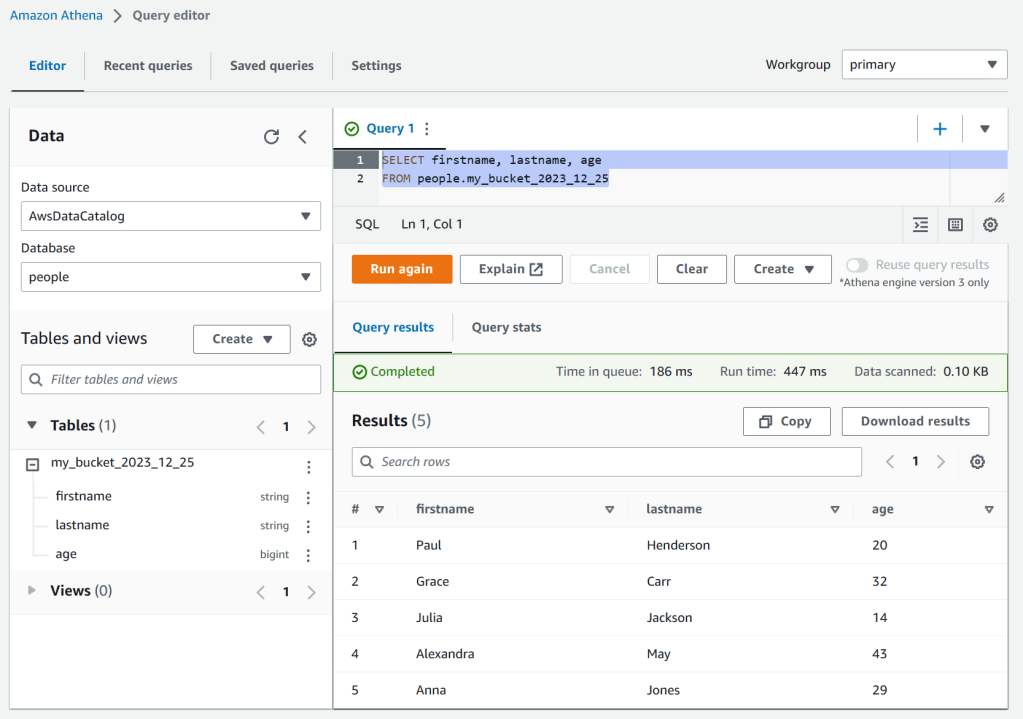

7. Athena – Query data via Glue table

• Click “Launch query editor”
  • Data source: “AwsDataCatalog“
  • Database: “people“
  • Table: “my_bucket_2023_12_25” or what you created
  • Query: Use the query below
  • Click “Run“

SELECT firstname, lastname, age
FROM people.my_bucket_2023_12_25

8. S3 – Create a bucket for output

• Click “Create bucket”
  • Bucket name: any unique name like “my-bucket-2023-12-25-output“
  • Accept all defaults -> It creates a bucket with no public access.
  • Click “Create bucket“

9. Glue – Create a Job

• Click “Jobs” on the left pane
• Create job: “Visual with a source and target”
  • Source: “S3“
  • Target: “S3“
• Click “Create“
• Visual Tab
  • Click “Source”
    • Check “Data Catalog table“
    • Database “people“
    • Table “my_bucket_2023_12_25” or what you created
  • Click “Transform – ApplyMapping”
    • Node Properties
      • Node Type: “SQL Query“
    • Transform
      • Use the query below
    • Output schema
      • Click “Edit”
        • fullname, string
        • age, long
      • Click “Apply“
  • Click “Target”
    • Format: “CSV“
    • Compression: “None“
    • S3: Browse and select it “s3://my-bucket-2023-12-25-output“
• Job details Table
  • Name: “PeopleDataJob“
  • IAM Role: Select the one you created before “AWSGlueServiceRole-People“
  • Under the “Advanced properties”
    • Script filename: “PeopleDataJob.py“
• Click “Save“
• Click “Run”
  • Check the Run status

select CONCAT(firstname, ' ', lastname) AS fullname, age from myDataSource

10. S3 – Check the output file

• Go to the S3 bucket “my-bucket-2023-12-25-output“
• Check the file exists
• Click “Download” to download the file

fullname,age
"Paul Henderson",20
"Grace Carr",32
"Julia Jackson",14
"Alexandra May",43
"Anna Jones",29
